6L90 Performance Transmission Complete Clutch Module - Level 4
Includes all 5 Clutch Kits | FREE UPS Ground to the contiguous United States (lower 48) | Detailed Instructions Included
Kit is designed with 45 tooth 4-5-6 clutch plates. This clutch pack provides 45% more surface area than a stock clutch set up. CDT's Billet 4-5-6 clutch hub and intermediate shaft (CDT part number 104690-45-P) is required in order to use this clutch pack. The clutch hub and intermediate shaft are not included in this kit. The 3-5-R clutch pack offers 40% more clutch area than stock.
In stock items ship within 1-2 business days.

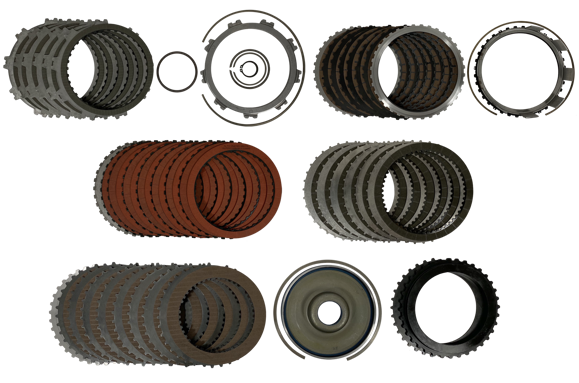

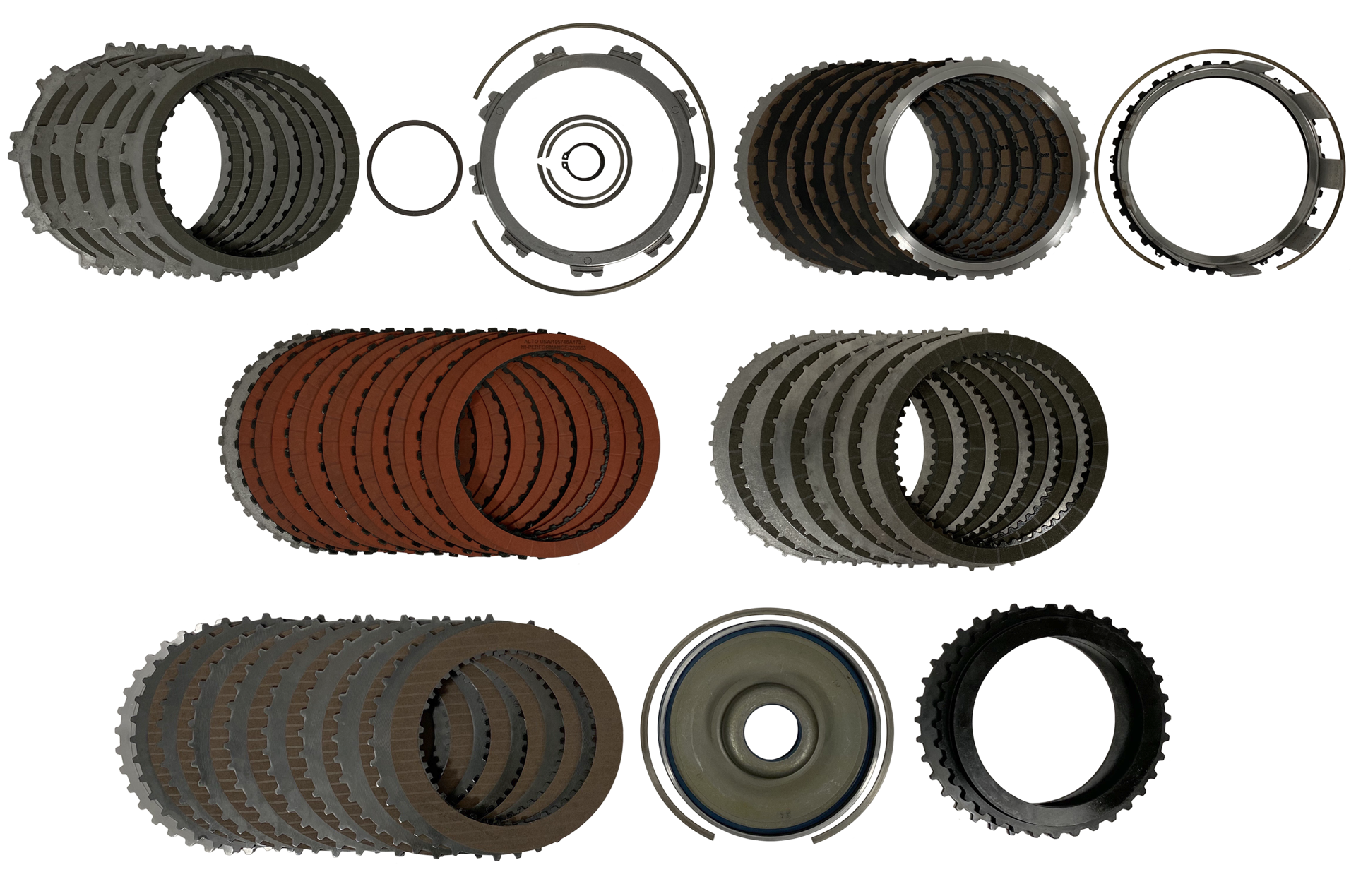

Picture for representation purposes only. Actual contents may vary as we continue to develop our products.
CDT456L4/90-CM (4-5-6 CLUTCH MODULE)
8 G3® Clutches
10 Lindered Steels (varying thicknesses)
1 Stepped Apply Plate
1 Wide Backing Plate
1 Snap Ring
2 Hi-Per Blue® Bonded Pistons
CDT456L4/90-CM offers 45% more clutch apply area than stock. G3® friction material is formulated to achieve minimal wear and maximize heat resistance. Lindured is a chemical and heat treatment process that hardens the steel, which results in less wear. Hi-Per Blue® Pistons are manufactured with upgraded High Performance Blue AEM material for superior thermal and chemical resistance, with better fit and performance. CDT's Billet 4-5-6 clutch hub and intermediate shaft (CDT part number 104690-45-P) is required in order to use this clutch pack.
CDT35RL4/90-CM (3-5-R CLUTCH MODULE)
7 Borg Warner® High Energy Clutches
7 Kolene® Steels (varying thicknesses)
1 Steel Plate
1 Apply Ring
1 Backing Plate
1 Snap Ring
CDT35RL4/90-CM offers 40% more clutch apply area than stock. High Energy material maintains consistent frictional behavior and tolerates extreme thermal stress applications. Kolene® Steels provide a surface treatment the enhances wear & fatigue resistance.
CDT26L4/90-CM (2-6 CLUTCH MODULE)
7 Red Eagle® Externally Splined Clutches
6 Red Eagle® Internally Splined Clutches
1 Externally Splined Plate
Red Eagle® Clutches are designed to limit the amount of slip providing a shorter apply time, generating less heat.
CDT1234L4/90-CM (1-2-3-4 CLUTCH MODULE)
6 High Energy® Clutches
6 Steels
1 Backing Plate
1 Snap Ring
1 Spiral Snap Ring
1 Snap Ring Kit
CDTLRL4/90-CM (LOW-REVERSE CLUTCH MODULE)
6 High Energy® Clutches
6 Steels
PLEASE NOTE: GM has a transmission that has the same outside dimensions as a 6L90 but uses one less clutch in all the clutch housings compared to a true 6L90. We call this transmission a 6L90LCC (less clutch capacity). Please refer to "Stock Clutch Capacity Chart" and "Length of Main Case Chart" on the "Transmission Specs" tab below to determine if you have a 6L90 or 6L90LCC. When ordering this part, please indicate in the Notes textbox above that you have a 6L90LCC. If you are unable to determine if you have a 6L90 or 6L90LCC, we will determine which transmission you have from the VIN.
