6L80 Performance Transmission Rebuild Kit - Level 2.5
Rated up to 700 RWHP, HP ratings are contingent on numerous factors, such as tune, vehicle weight, power adder, use, etc. | Detailed Instructions Included | FREE UPS Ground to the contiguous United States (lower 48)
Kit is designed with stock dimension 36-tooth 4-5-6 clutch plates and will work with the OE intermediate 4-5-6 clutch hub. CDT's Billet 4-5-6 clutch hub and intermediate shaft (CDT part number 104680-36) is included in this kit. The 4-5-6 clutch pack provides 17% more surface area than a stock clutch set up. The 3-5-R clutch pack offers 25% more clutch area than stock.
This 6L80 transmission upgrade is engineered for those seeking unmatched transmission performance and reliability in both trucks and cars. Designed for heavy-duty use, it ensures optimal functionality with quality-tested components and detailed specifications tailored for various vehicles. Featuring special tools and precision-engineered parts, this transmission kit is perfect for those looking to upgrade or replace their current setup. With enhanced clutch packs offering increased surface area, the 6L80 transmission delivers improved performance and durability. Whether you’re driving for daily commutes or pushing your vehicle to the limits, this system is built to meet the demands of performance enthusiasts who hear and value quality. Easy to install and rigorously tested, it’s the ideal solution for enhancing your vehicle’s reliability and performance.
In stock items ship within 1-2 business days.

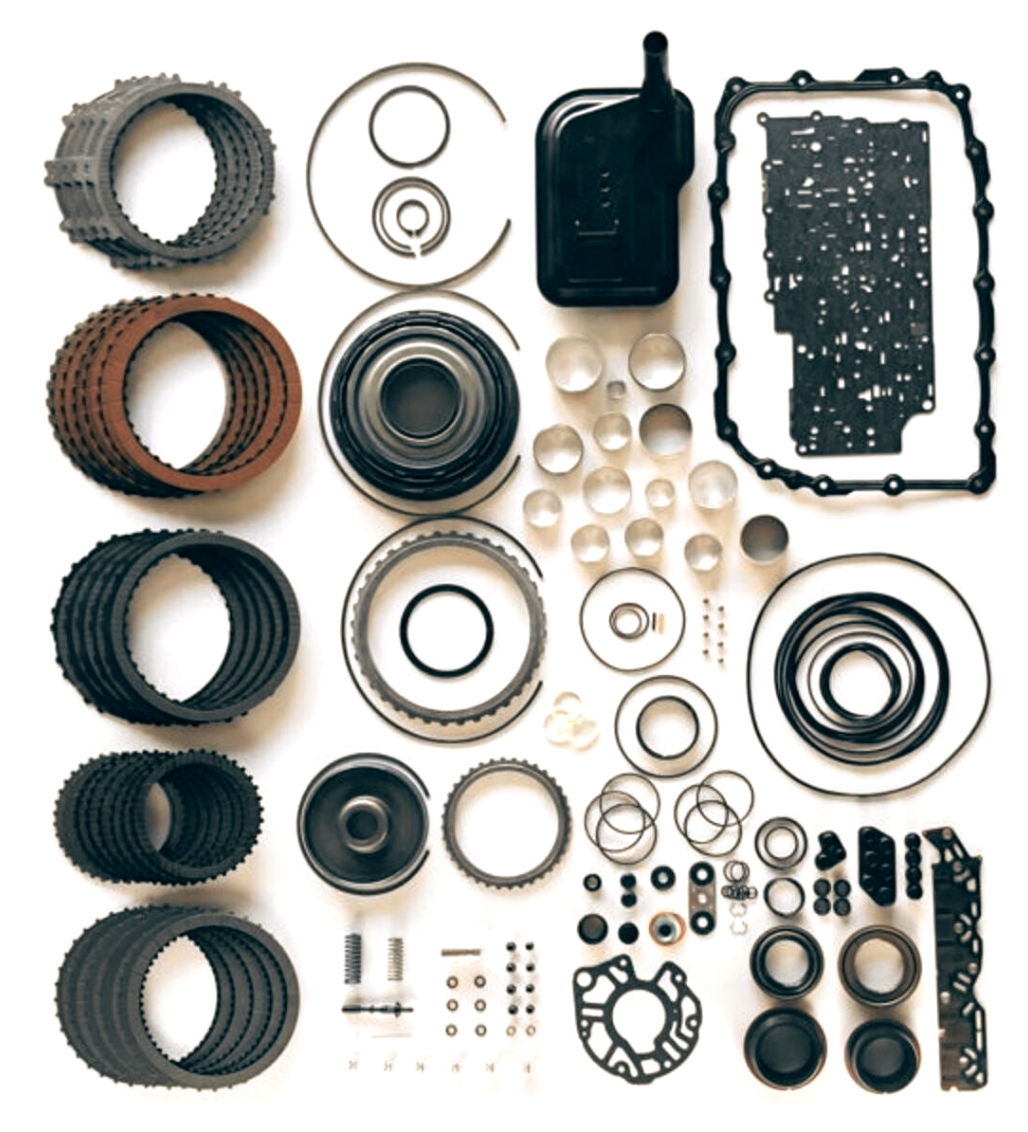

Picture for representation purposes only. Actual contents may vary as we continue to develop our products.
CDT456L2.5/80 (4-5-6 CLUTCH KIT)
7 Borg Warner® Clutches
6 Lindered Steel Plates
1 Apply Plate
1 Backing Plate
1 Snap Ring
2 Bonded Pistons
CDT456L2/80 offers 17% more clutch apply area than stock. This clutch module works with the OE intermediate 4-5-6 clutch hub. Lindered is a chemical and heat treatment process that hardens the steel, which results in less wear.
104680-36 (BILLET INTERMEDIATE SHAFT & 4-5-6 CLUTCH HUB)
One piece 300M steel forging is heat-treated and shot-peened for maximum durability. This shaft doubles oil flow to the clutch pack for improved resistance to heat and longer clutch life. It is designed for use with the OE dampener to minimize risk of chirp/squawk. The hub is designed for OE steels and clutches.
CDT35RL2.5/80 (3-5-R CLUTCH KIT)
5 Borg Warner® High Energy Clutches
6 Kolene® Steels (varying thickness)
1 Backing Plate
1 Snap Ring
CDT35RL2.5/80 offers 25% more clutch apply area than stock. High Energy material maintains consistent frictional behavior and tolerates extreme thermal stress applications. Kolene steels provide a surface treatment that enhances wear & fatigue resistance.
CDT26L2.5/80 (2-6 CLUTCH KIT)
5 Borg Warner® Clutches
5 Steels
1 Snap Ring
1 Hi-Per Blue® Bonded Piston
Hi-Per Blue® Pistons are manufactured with upgraded High-Performance Blue AEM material for superior thermal and chemical resistance with better fit and 6L80 transmission performance.
CDT1234L2.5/80 (1-2-3-4 CLUTCH KIT)
5 High Energy® Clutches
5 Steels
1 Snap Ring
1 Spiral Snap Ring
1 Snap Ring Kit
1 Hi-Per Blue® Bonded Piston
High Energy material maintains consistent frictional behavior and tolerates extreme thermal stress applications. Hi-Per Blue® Pistons are manufactured with upgraded High Performance Blue AEM material for superior thermal and chemical resistance with better fit and 6L80 transmission performance.
CDTLRL2.5/80 (LOW-REVERSE CLUTCH KIT)
5 High Energy® Clutches
5 Steels
1 Hi-Per Blue® Bonded Piston
High Energy material maintains consistent frictional behavior and tolerates extreme thermal stress applications. Hi-Per Blue® Pistons are manufactured with upgraded High Performance Blue AEM material for superior thermal and chemical resistance with better fit and transmission performance.
CDTVBPKL2.5/80-90 (VALVE BODY & PUMP KIT)
2 Boost Valve Springs
2 Clutch Regulator Valve Springs
1 Center Support Seal Kit
1 Pressure Regulator Valve Kit
1 Line Pressure Booster Kit
1 O-ringed End Plug Kit
1 Pump Slide Spring
CDTMKL2.5/80 (MASTER KIT)
1 High Performance Overhaul Kit engineered utilizing premium materials for racing.
1 Bonded OE Valve Body Plate
1 Bushing Kit (includes extension housing bushings)
1 Pan Gasket
1 Filter
1 Oversized Pump Washer
We do not include welded hubs in Kit. In the beginning of R&D on this 6L80 transmission, we thought this area needed strengthening. However, in all the units that we've rebuilt, we've NEVER seen one broken. Therefore, we deemed it unnecessary. Also, we do not include a billet pump rotor because the factory pump rotor has proven itself reliable (we have never seen one broken) unlike the 4L60E.
